The High Mast Lighting Race Track 300W/350W/400W/450W/500W 80000Lm features tunable wattage and selectable 3000K/4000K/5000K color temperatures within the same fixture. Designed for racetracks, stadiums, and large outdoor areas, it delivers powerful, uniform illumination. Its durable construction ensures reliable, energy-efficient performance for demanding high-mast lighting applications
Trusted by hundreds of businesses, municipalities & contractors See Projects

Replaces up to 1000 Watts HID
| Watts: | 500 |
| Operating Voltage: | 120-277 VAC |
| Operating Temperature: | -4° F to 113° F |
| Operating Humidity: | 10% to 100%RH |
| Power Factor (PF): | >95% |
| Power Supply Efficiency: | >90% |
| LED Luminous Flux (lm): | 80000 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | Tunable 3/4/5K |
| Lens type: | Eye Shaped |
| Expected Life: | 100,000 hrs. |
| L70: | 70,000 hrs. |
| Beam Angle: | Type III, Type Vsº |
| IP Rating: | IP65 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Brown (dark) |

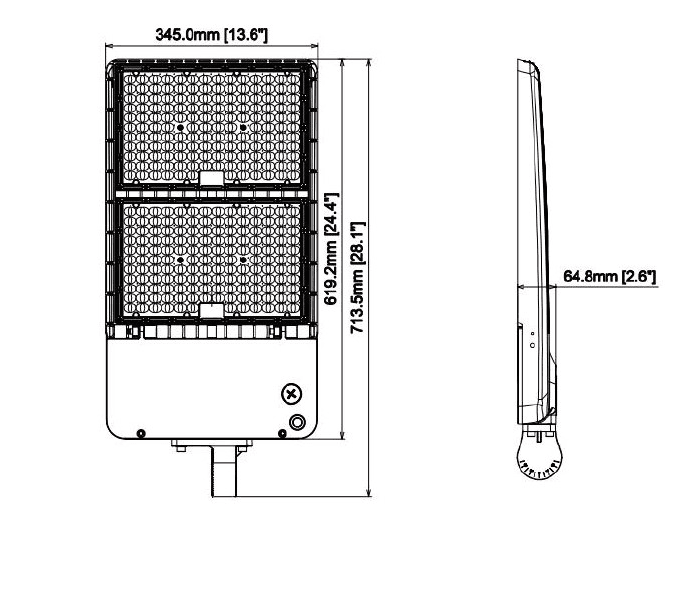

| Product Size: | 13.6" x 24.4" x 2.6" |
| Package Size: | 18'' x 28'' x 6'' |
| Unit Gross Weight: | 17.9200 Lb |
| Safety Compliance: | cUL, UL |
| Energy Efficiency/Performance: | DLC |













615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
contact@ledradiant.com — www.ledradiant.com
The High Mast Lighting Race Track 300W/350W/400W/450W/500W 3CCT 80000Lm is a high-performance lighting solution designed for large outdoor areas that require powerful and consistent illumination. Engineered for demanding environments such as racetracks, stadiums, highways, and industrial facilities, this fixture delivers exceptional brightness, flexibility, and durability in a single unit.
One of the key features of this high mast LED lighting system is its tunable wattage capability, allowing users to select between 300W, 350W, 400W, 450W, and 500W depending on the specific lighting requirements. This flexibility makes it possible to adjust light output based on mounting height, area size, and application needs. At maximum performance, the fixture delivers up to 80,000 lumens, providing intense and uniform illumination for large-scale outdoor spaces.
In addition to adjustable wattage, the fixture includes 3CCT selectable color temperature technology, allowing users to choose between 3000K, 4000K, and 5000K within the same fixture. The 3000K warm white setting creates a more comfortable lighting environment, the 4000K neutral white offers balanced visibility, and the 5000K cool white provides bright, daylight-like illumination that enhances clarity and safety in high-activity areas.
Because both wattage and color temperature are adjustable within the same fixture, this high mast light offers exceptional versatility. A single product can be configured to meet multiple project requirements, reducing the need for different models and simplifying installation and inventory management.
Designed for high mounting applications, this fixture provides wide-area light distribution, ensuring consistent illumination across large surfaces. Its advanced optical system minimizes dark spots and glare, improving visibility for drivers, athletes, and workers. This is especially important in racetracks and sports environments where precision and safety are critical.
Constructed with durable materials, the fixture is built to withstand harsh outdoor conditions, including wind, rain, dust, and temperature fluctuations. Its robust design ensures long-term performance and reliability, even in demanding environments where lighting systems must operate continuously.
The LED High Mast Lighting system is also designed for energy efficiency. Despite its high lumen output, it consumes less energy compared to traditional high-intensity discharge (HID) lighting systems. This helps reduce operating costs while maintaining powerful illumination.
The integrated LED technology provides a long operational lifespan, minimizing maintenance requirements and reducing downtime. This is particularly beneficial for high mast installations, where maintenance access can be difficult and costly.
This High Mast Lighting Race Track fixture is ideal for a wide range of applications, including racetracks, stadiums, highways, ports, airports, large parking lots, industrial facilities, and outdoor sports complexes. It is suitable for both new installations and retrofit projects that require high-output lighting.
By combining tunable wattage, 3CCT technology, high lumen output, and durable construction, the High Mast Lighting Race Track 300W/350W/400W/450W/500W 80000Lm offers a reliable and adaptable solution for large-scale outdoor lighting projects. It delivers powerful, uniform illumination while ensuring energy efficiency and long-term performance in demanding environments.
