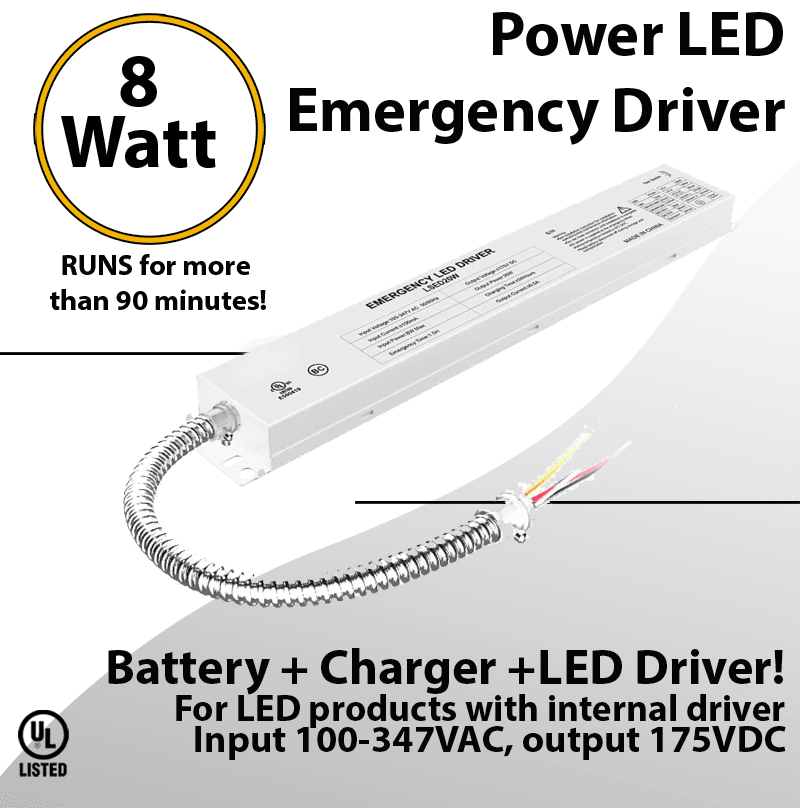

LED External Emergency Driver 8 Watt Field Installable UL 100-347VAC

Availability:In Stock

5( 2 )

95 Google Reviews

$92.00$77.95

Sign up for price alert

Buy 10 for $76.39 each and save 17%

Buy 25 for $75.61 each and save 18%

1

This LED Emergency driver is UL listed and field install-able. Good for LED products with an internal driver.

It allows an LED fixture to be used for both normal and emergency operation. In the event of a power failure, the driver switches to emergency mode and operates the existing fixture for 90 minutes.

Main Specs:

8W, Output voltage 175VDC
Up to 90 minutes emergency
Input current: 416-800mA
Field Installable
Continuous charging

Suitable Applications:

Ceiling LED Panels
Wall-packs
Any LED with an internal driver

Trusted by hundreds of businesses, municipalities & contractors See Projects

Specifications:

SKU: EMB-HH2-0890M-UL

LEDRadiant — Lighting solutions and savings

Emergency driver for LED products

Electrical:

Watts:	8
Operating Voltage:	120-347 VAC
Operating Temperature:	-22° F to 122° F
Operating Humidity:	20% to 90%RH
Power Factor (PF):	>98%
Power Supply Efficiency:	>98%

Photometric:

LED Luminous Flux (lm):	N/A
CRI (ra):	>N/A
Color Temperature (Kelvin):	n/a
Lens type:	n/a
Expected Life:	n/a hrs.
L70:	n/a hrs.
Beam Angle:	n/aº

Mechanical:

IP Rating:	IP40
Connector:	Wired
Base Type:	Hardwired
Heat Radiator:	Sheet Metal
Color:	White
Product Size:	15.0" x 2.24" x 1.3"
Package Size:	18'' x 4'' x 2.5''
Unit Gross Weight:	4.2000 Lb

Certifications:

Safety Compliance:	cUL, UL
Environmental:	RoHS

LED External Emergency Driver 8 Watt Field Installable UL 100-347VAC

5 Year Warranty

Safety Ok

APPLICATIONS:

OfficesCommercial CorridorsGymsAnd more
