Reliable 9W LED emergency driver for 100-347VAC systems. UL listed, CEC Title 20 and NFPA 101 compliant. Includes test switch, auto self-test, lithium battery, and multiple safety protections. Ideal for commercial and industrial installations. Field or factory installable with 90-minute backup. Compact, durable, and covered by a 5-year warranty.
Click here to see other Emergency Drivers, EXIT Lights and Emergency Lights.
Trusted by hundreds of businesses, municipalities & contractors See Projects
Emergency driver for LED products
| Watts: | 9 |
| Operating Voltage: | 100-347 VAC |
| Operating Temperature: | 32° F to 122° F |
| Operating Humidity: | 20% to 90%RH |
| Power Factor (PF): | >98% |
| Power Supply Efficiency: | >98% |
| LED Luminous Flux (lm): | N/A |
| CRI (ra): | >N/A |
| Color Temperature (Kelvin): | n/a |
| Lens type: | n/a |
| Expected Life: | n/a hrs. |
| L70: | n/a hrs. |
| Beam Angle: | n/aº |
| IP Rating: | IP40 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Sheet Metal |
| Color: | White |
| Product Size: | 14.6" x 1.62" x 1.43" |
| Package Size: | 16'' x 8'' x 3'' |
| Unit Gross Weight: | 3.0000 Lb |
| Safety Compliance: | cUL |
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
contact@ledradiant.com — www.ledradiant.com

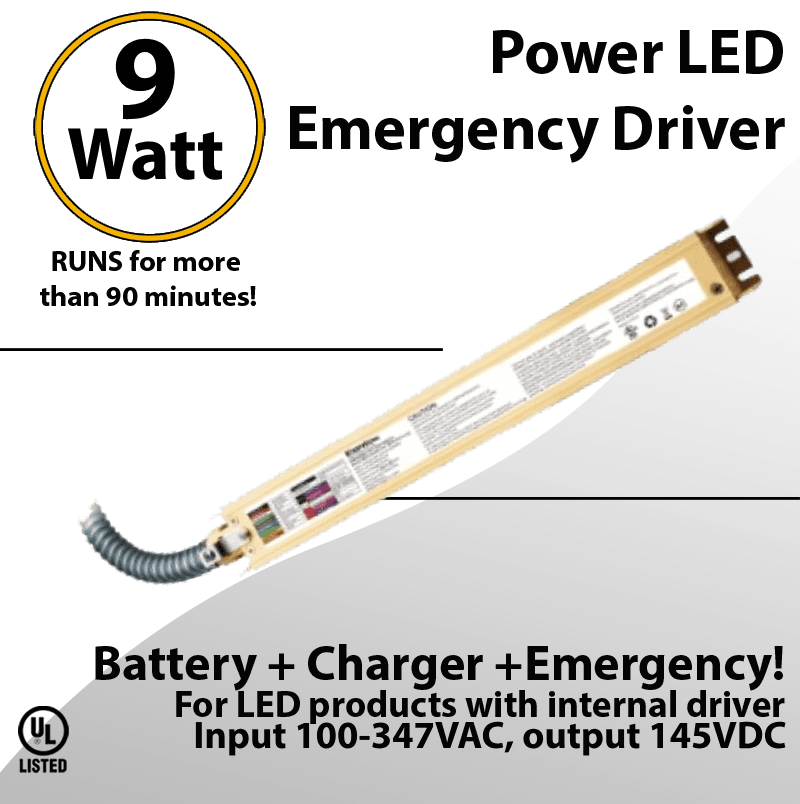

LED External Emergency Driver 9W – Reliable Emergency Backup for LED Luminaires
The LED External Emergency Driver 9 Watt Field Installable UL 100-347VAC is a dependable and efficient emergency lighting solution designed for use with a wide range of LED luminaires (9W to 350W). Suitable for both factory and field installation, this driver is fully compliant with UL standards and meets the CEC Title 20 and NFPA 101 Life Safety Code, ensuring optimal performance in safety-critical environments.
With a universal input voltage range of 100-347VAC, this driver offers flexible compatibility across commercial, industrial, and institutional settings. It delivers a constant output of 9 watts during emergency mode, powering LED fixtures for up to 90 minutes, ensuring essential areas remain illuminated during power outages.
Key features include a 2-in-1 test switch and LED indicator for easy monitoring, and the option for manual testing via remote control. It also features monthly and annual self-testing functions, helping maintenance teams stay compliant with safety regulations without added hassle.
This emergency driver offers multiple layers of built-in protection, including:
Overcharge protection for the lithium battery
Battery over-discharge protection
Output overload protection
Short-circuit protection
Open load protection
It uses a high-quality lithium battery that recharges in under 24 hours and operates effectively in ambient temperatures between 0°C and 50°C (32°F to 122°F), making it suitable for various environments and climates.
Designed to perform under pressure, this driver supports LED loads up to 6A on the AC side and features a DC output voltage of 145V. It draws a maximum of 8 watts input power, with a power factor of 0.6 at 100VAC and 0.5 at 347VAC, optimizing energy use while maintaining backup readiness.
The compact and sturdy design, paired with a 5-year limited warranty, ensures long-term peace of mind and easy integration into emergency lighting plans for office buildings, warehouses, schools, hospitals, and other critical facilities.
Whether you're upgrading an existing system or designing new emergency lighting, this LED External Emergency Driver 9W delivers the reliability, safety, and performance your space needs during power failures.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
