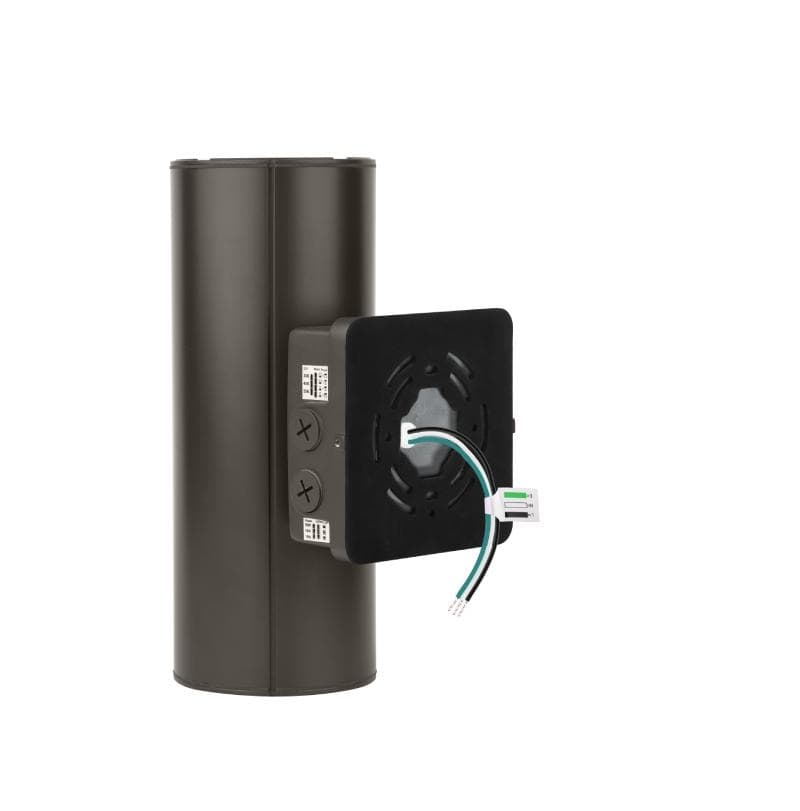

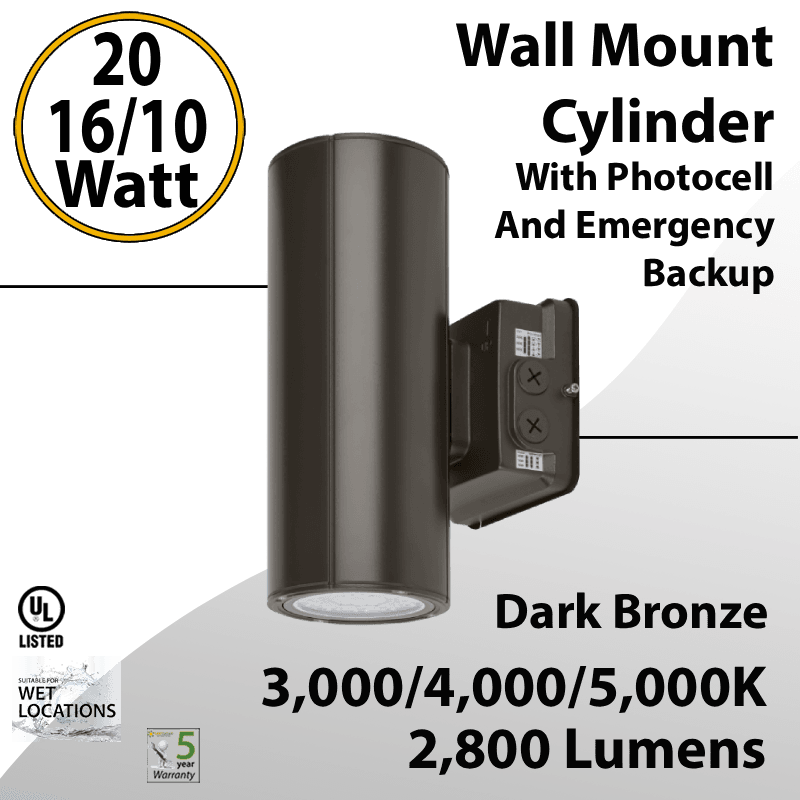

The LED Wall Mount Cylinder Light 10/16/20W 3CCT 2800Lm Photocell Emergency is a versatile outdoor lighting fixture with selectable wattage and 3CCT color temperatures integrated within the same lamp. It also features a built-in photocell and integrated emergency backup, already included inside the fixture. Ideal for buildings, factories, and commercial exteriors, providing efficient and reliable lighting.
Trusted by hundreds of businesses, municipalities & contractors See Projects

| Watts: | 20 |
| Operating Voltage: | 120-277 VAC |
| Operating Temperature: | -40° F to 122° F |
| Operating Humidity: | 10% to 100%RH |
| Power Factor (PF): | >95% |
| Power Supply Efficiency: | >90% |
| LED Luminous Flux (lm): | 2800 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | Tunable 3/4/5K |
| Lens type: | Clear |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 120º |
| IP Rating: | IP65 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Dark Bronze |
| Product Size: | 11.81" x 5.63" x Φ4.62" |
| Package Size: | 12.81'' x 6.63'' x 5.62'' |
| Unit Gross Weight: | 5.0000 Lb |
| Safety Compliance: | cUL, UL |













615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
contact@ledradiant.com — www.ledradiant.com
The LED Wall Mount Cylinder Light 10/16/20W 3CCT 2800Lm Photocell Emergency is a modern and versatile exterior lighting fixture designed to provide reliable illumination for a wide range of architectural and commercial applications. With multiple advanced features integrated into one single LED fixture, this wall-mounted cylinder light offers flexibility, energy efficiency, and enhanced safety for buildings, outdoor spaces, and industrial environments.
One of the key advantages of this LED wall mount cylinder light is that several essential lighting functions are already built into the same lamp. The fixture includes selectable wattage, adjustable color temperature, a photocell sensor, and an emergency backup system, all integrated inside the fixture. This eliminates the need for additional components or accessories, making installation easier and more efficient for electricians and lighting professionals.
The fixture offers three selectable wattage options: 10W, 16W, and 20W, allowing installers to adjust the light output depending on the lighting needs of the project. This built-in flexibility helps optimize energy consumption while maintaining the right illumination level for different spaces. With a maximum output of up to 2800 lumens, the fixture provides bright and uniform lighting suitable for exterior walls, building entrances, walkways, corridors, and architectural facades.
Another important feature of this LED cylinder wall light is the integrated 3CCT technology, which allows users to select between three different color temperatures within the same fixture. With a simple internal switch, installers can choose between 3000K, 4000K, or 5000K, providing warm, neutral, or cool white lighting depending on the design requirements or application. This feature allows the same fixture to be used across a wide range of environments while maintaining consistent aesthetics.
The fixture also includes a built-in photocell sensor that automatically controls the operation of the light based on natural daylight levels. The photocell turns the fixture on at dusk and off at dawn, ensuring efficient energy use and eliminating the need for manual control. Since the photocell is already integrated inside the lamp, the installation process is simplified and no external sensors are required.
A standout feature of this model is the integrated emergency lighting function, which is already included within the same fixture. In the event of a power outage, the emergency system automatically activates and provides temporary illumination to maintain visibility and safety in the area. Because the emergency backup is built directly into the fixture, there is no need for separate emergency drivers or additional emergency lighting units. This makes the product especially suitable for locations where emergency lighting is required.
The sleek cylindrical design provides a clean and contemporary appearance that enhances the architectural look of any building. The fixture blends easily with modern commercial and residential structures while providing reliable and functional lighting performance.
This LED Wall Mount Cylinder Light with selectable wattage, 3CCT technology, integrated photocell, and built-in emergency backup is ideal for buildings, factories, warehouses, commercial properties, and architectural lighting applications. By integrating multiple lighting features into one single fixture, this product simplifies installation, reduces maintenance, and offers a flexible lighting solution for a wide variety of projects.
