This compact PIR motion sensor with an integrated photocell is ideal for low bay luminaires. Operating on 12V DC, it provides daylight harvesting, dusk-to-dawn control, and customizable settings via the RM51 remote control (model MSK-TRA-RM51A-XX) —available on our website. UL and RoHS certified, it ensures reliable and energy-efficient lighting performance.
Trusted by hundreds of businesses, municipalities & contractors See Projects
| Watts: | n/a |
| LED Luminous Flux (lm): | n/a |
| CRI (ra): | >n/a |
| Color Temperature (Kelvin): | n/a |
| Lens type: | None |
| Expected Life: | n/a hrs. |
| L70: | n/a hrs. |
| Beam Angle: | n/aº |
| IP Rating: | IP20 |
| Base Type: | Hardwired |
| Product Size: | 0 |
| Package Size: | 2'' x 4'' x 2'' |
| Unit Gross Weight: | 3.0000 Lb |
| Safety Compliance: | cUL |
| EMI/RFI compliance: | FCC |
| Energy Efficiency/Performance: | DLC |
| Environmental: | RoHS |
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
contact@ledradiant.com — www.ledradiant.com

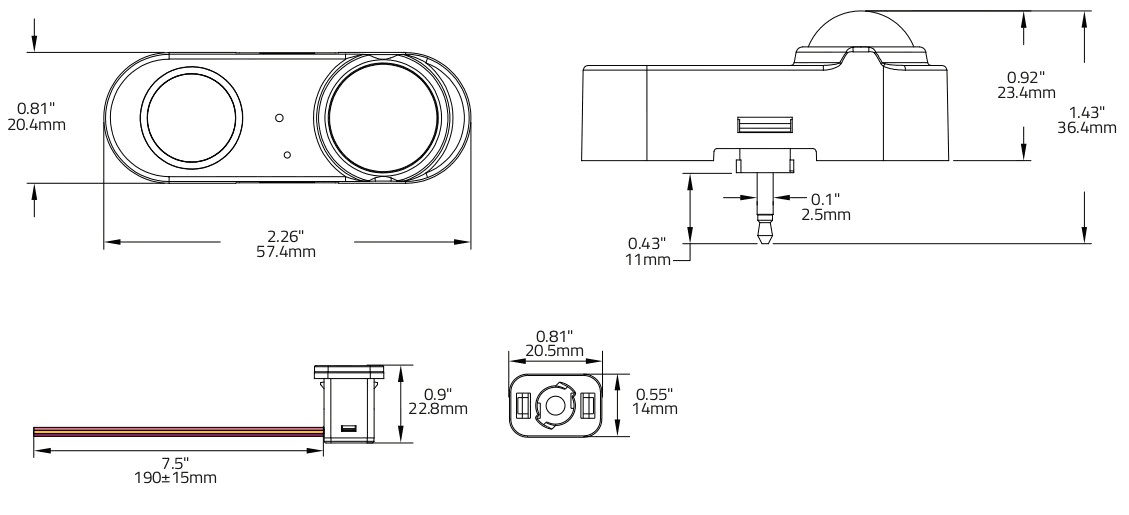

The PIR Motion Sensor with Integrated Photocell for Low Bay Fixtures 12V DC is designed to bring intelligent lighting control and energy efficiency to commercial and industrial environments. With its compact, oval-shaped design, it easily integrates into a wide variety of low-profile luminaires, making it ideal for applications such as offices, warehouses, hallways, and retail spaces.
This advanced sensor operates on 12V DC, supplied by a 0–10V dim-to-off LED driver, ensuring smooth compatibility with modern lighting systems. Its plug-and-play 2.5mm audio jack connection allows for quick and simple installation, reducing setup time and maintenance costs. The sensor automatically detects motion and adjusts lighting levels accordingly, providing the perfect balance between comfort, convenience, and energy savings.
One of its standout features is the integrated photocell, which enables dusk-to-dawn operation independent of motion detection. This means lights automatically adjust based on ambient light levels, maintaining optimal illumination throughout the day and night. Additionally, its daylight harvesting capability intelligently measures natural and artificial light to reach the target brightness, reducing unnecessary energy consumption while preserving visual comfort.
The device supports various operational modes that can be easily configured through the RM51 remote control (model MSK-TRA-RM51A-XX) —available directly on our website. This remote allows users to fine-tune detection sensitivity, time delay, and daylight thresholds to meet the specific needs of different environments. Whether you require quick response in a high-traffic area or gradual dimming in a quieter setting, the remote offers the flexibility to customize performance with precision.
Built with a high-quality UL 94-5VA housing, this sensor is both durable and flame-resistant. It features a detection range of up to 32 feet and supports a maximum mounting height of 15 feet, making it suitable for a wide range of low bay lighting setups. The IP20 rating ensures reliable operation in indoor environments, while the operating temperature range of -30°C to 65°C (-22°F to 149°F) guarantees consistent performance under varied conditions.
Safety and compliance are key priorities. The product meets UL8750 and RoHS standards and is cULus listed as an LED controller, ensuring quality, safety, and long-term reliability. It also comes backed by a 5-year warranty, providing additional peace of mind for installers and end users.
In summary, the PIR Motion Sensor with Integrated Photocell for Low Bay Fixtures 12V DC combines motion sensing, daylight harvesting, and plug-and-play convenience to create an efficient and intelligent lighting solution. Perfect for energy-conscious projects, it delivers superior performance, easy setup, and reliable control. For enhanced customization, pair it with the RM51 remote control (MSK-TRA-RM51A-XX) —readily available on our website— and enjoy complete control over your lighting system.
We invite you to browse our selection and do not hesitate to chat with us or call us to 844-533-7230 for any question regarding our LED products.
