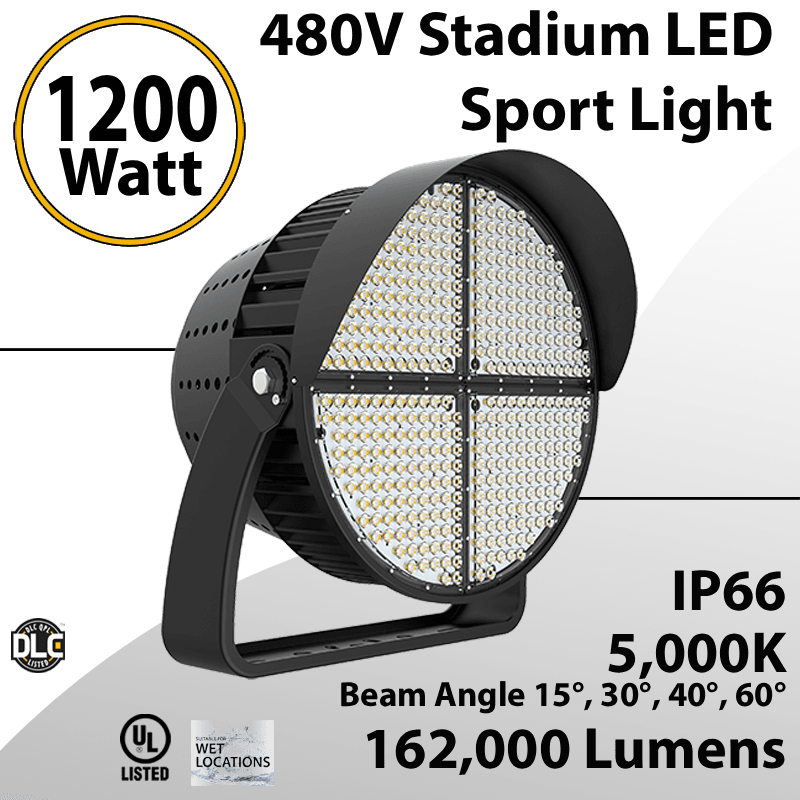

The Stadium Lights Sport Lighting 1200W delivers 162,000 lumens of powerful illumination for stadiums, sports complexes, race tracks, airports, and industrial facilities. Featuring selectable 15°, 30°, 40°, and 60° beam angles, bright 5000K daylight output, 0-10V dimming, and a reliable Yingfeite driver, this fixture ensures outstanding outdoor lighting performance. Built with advanced cold forging technology, durable IP66 waterproof protection, and an included mounting bracket, it provides dependable operation for demanding commercial applications.
Trusted by hundreds of businesses, municipalities & contractors See Projects
Equals up to 2x 1000W HID
| Watts: | 1200 |
| Operating Voltage: | 277-480 VAC |
| Operating Temperature: | -40° F to 122° F |
| Operating Humidity: | 20% to 90%RH |
| Power Factor (PF): | >95% |
| Power Supply Efficiency: | >95% |
| LED Luminous Flux (lm): | 162000 |
| CRI (ra): | >80 |
| Color Temperature (Kelvin): | 5000 K |
| Lens type: | Eye Shaped |
| Expected Life: | 70,000 hrs. |
| L70: | 50,000 hrs. |
| Beam Angle: | 15°/30°/40°/60°º |
| IP Rating: | IP66 |
| Connector: | Wired |
| Base Type: | Hardwired |
| Heat Radiator: | Anodized Aluminum |
| Color: | Black |

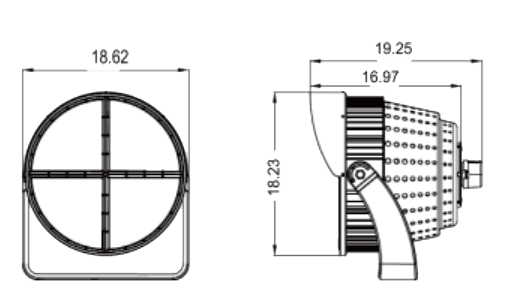

| Product Size: | 19.25" x 18.62" x 18.23" |
| Package Size: | 21.25'' x 20.62'' x 20.23'' |
| Unit Gross Weight: | 39.0000 Lb |
| Safety Compliance: | UL |
| Energy Efficiency/Performance: | DLC |
615 N 21st Avenue, Hollywood, FL 33020, United States of America — Tel: +1 (844)533-7230
contact@ledradiant.com — www.ledradiant.com
The Stadium Lights Sport Lighting 480V 1200W 162000Lm is a high-performance LED lighting solution designed for stadiums, sports complexes, race tracks, industrial facilities, ports, airports, and other large outdoor commercial applications. Built for maximum brightness, durability, and energy efficiency, this professional-grade fixture delivers exceptional lighting performance in demanding environments.
With an impressive output of 162,000 lumens, this stadium light provides powerful and uniform illumination that improves visibility and safety across large outdoor areas. Its advanced LED technology offers significantly lower energy consumption compared to traditional HID or metal halide fixtures while maintaining outstanding brightness and long operational life.
This LED sports light includes selectable 15°, 30°, 40°, and 60° beam angles, allowing flexible lighting distribution depending on project requirements.
These beam angle options make the fixture suitable for a wide variety of outdoor lighting layouts and professional stadium installations.
Featuring a crisp 5000K daylight color temperature, this fixture delivers bright white illumination that enhances visibility and creates a safer environment for athletes, workers, drivers, and spectators. The daylight output helps reduce shadows and improves overall lighting clarity in outdoor spaces.
Designed for commercial and industrial electrical systems, the fixture operates on a versatile 277-480VAC input range. It also includes 0-10V dimming capability, allowing adjustable brightness control for different lighting requirements and improved energy savings.
This dimming feature helps facilities customize light levels depending on events, schedules, or operational needs.
The Stadium Lights Sport Lighting fixture is equipped with a reliable Yingfeite driver, designed to provide stable performance, energy efficiency, and long-lasting operation. The high-quality driver helps maintain consistent illumination and dependable functionality in demanding outdoor environments.
Manufactured using advanced cold forging technology, this LED stadium light offers superior structural strength and excellent heat dissipation. Efficient thermal management helps:
This makes the fixture highly dependable for continuous-use commercial and industrial applications.
Featuring an IP66 waterproof rating, this sports light is protected against:
Its durable black finish provides a modern professional appearance while enhancing resistance to outdoor wear and corrosion.
For easier installation and positioning, the fixture comes complete with an included mounting bracket. The bracket allows installers to securely mount and properly adjust the light angle for optimal illumination in stadiums, sports fields, industrial facilities, and high-mast lighting systems.
Including the bracket helps simplify installation and reduces additional mounting hardware requirements.
This LED sports lighting fixture is both UL Listed and DLC Certified, ensuring high standards for safety, reliability, efficiency, and commercial-grade quality. These certifications make it an excellent choice for municipalities, schools, contractors, sports facilities, and industrial projects.
The 1200W LED Stadium Sport Lighting Fixture is ideal for:
With 162,000 lumens, multiple beam angle options, durable IP66 construction, premium components, and included mounting bracket, this LED stadium light delivers reliable and energy-efficient performance for demanding outdoor lighting applications.
